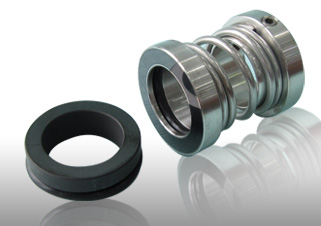

T-968

OPERATING LIMITS
Pressure Range:12kg/c㎡
Temperature Range:
  -20°c~200°c
Speed Range:15m/sec.
Viscosity:500cp
Particle:<0.5%

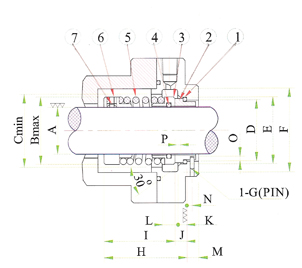

Item Description Mat'I
1 O-RING NBR / VITON
2 FLATING SEAT CARBON
3 SEAL RING SUS 304 / CERAMIC /
4 O-RING NBR / VITON
5 COIL SPRING  SUS 304
6 COLLAR  SUS 304
7 SET SCREW  SUS 304

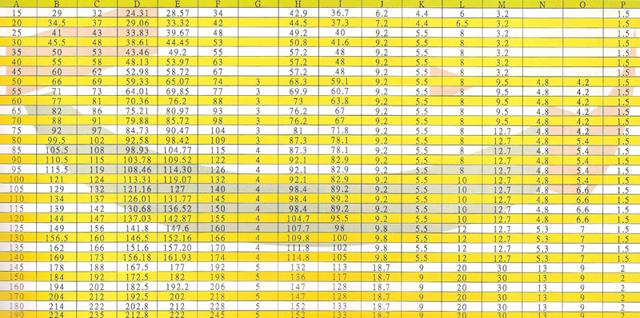

ISO 規格
                     mm
